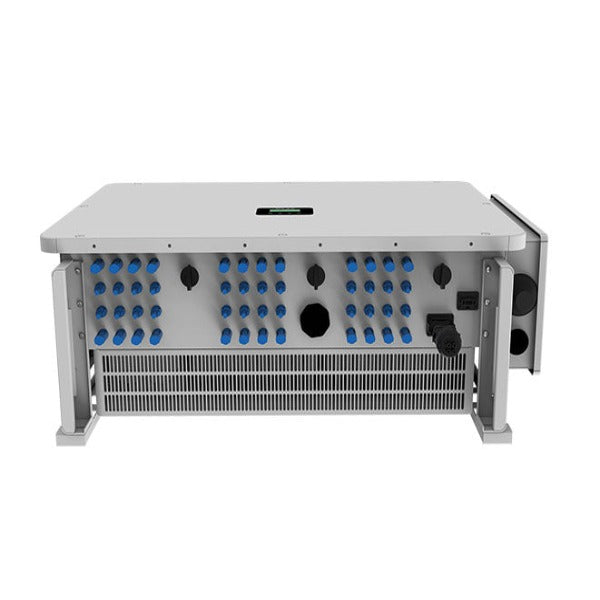

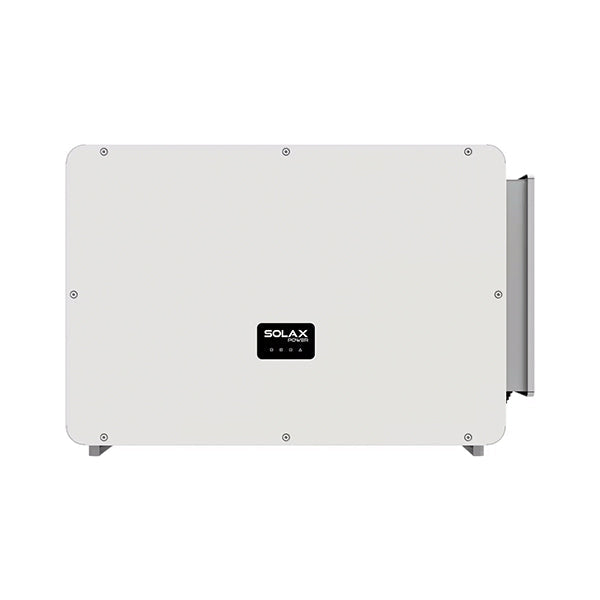

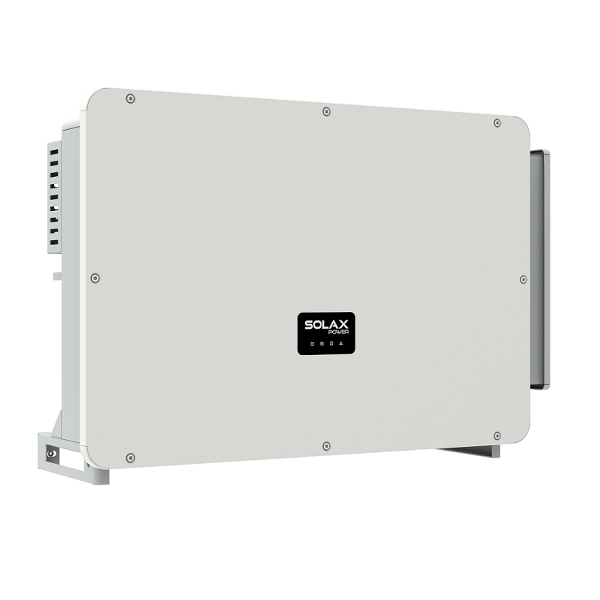

SolaX X3 FORTH 125kW Three-Phase String Inverter

Robustly engineered for commercial operations and rooftops, the SolaX X3 FORTH three-phase string inverter delivers on its promise of quality, reliability and efficiency. An ultra-wide MPPT voltage range, a maximum input voltage of 1100V, and an impressive maximum efficiency of 98.6% allows for improved energy harvesting to make the most of the available sunlight.

The X3 FORTH 125kW features a huge 12 MPPTs while the 150% oversized PV power can help maximise your power yield. Its ingress protection rating of IP66 means it's highly resistant to dust and water damage so it's ideal for situating either inside or outside. Meanwhile, smart features such as the night-time power compensation and advanced heat dissipation improve its longevity and running costs.

Key features

1. Highly efficient three-phase inverter designed for commercial applications
2. 12 MPP trackers, each with two strings
3. Easy to install and set up
4. 150% PV oversizing input; 110% overloading output
5. 180~1000Vdc MPPT voltage range
6. Inbuilt export power control
7. Remote setting and upgrading
8. Supports Smart I-V curve diagnosis
9. Fuse-free design with smart string current monitoring
10. AC terminal temperature detection and optional AFCI protection for safety
11. Night-time reactive power compensation
12. Smart air cooling to extend the lifetime of the fan
13. Advanced heat dissipation helps make the system compact and lightweight
14. Maximum efficiency: 98.6%
15. Ingress protection: IP66
16. Dimensions: 985mm x 660mm x 327.5mm
17. Weight: 87kg
18. Five-year standard warranty
