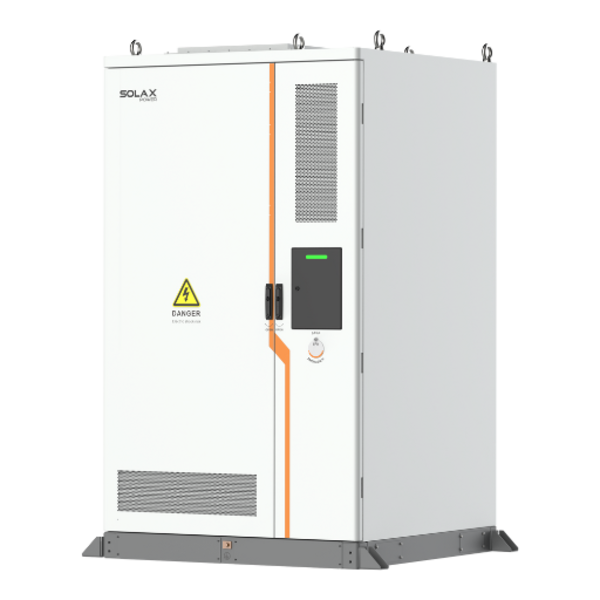

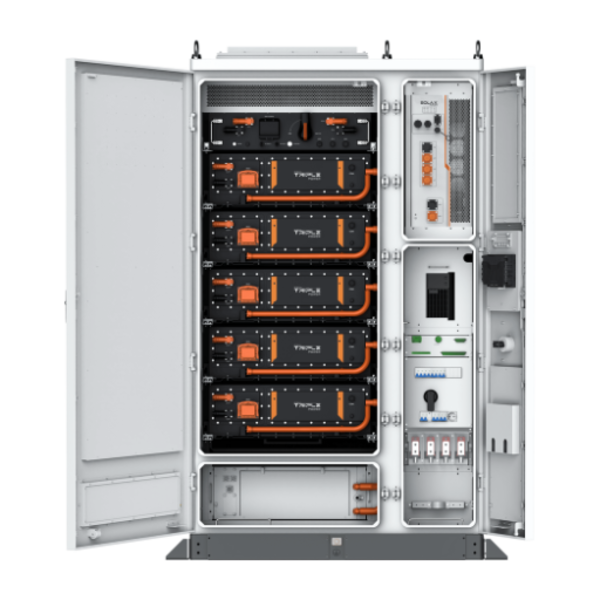

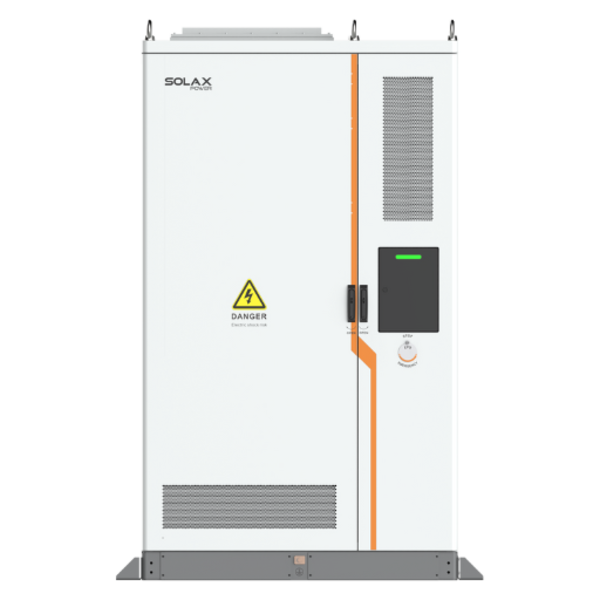

SolaX ESS-TRENE Liquid-Cooled 125kW Inverter and 261kWh Battery

Designed for commerce and industry, this highly integrated all-in-one inverter and battery system is made up of a 125kW inverter plus a battery storage capacity of 261kWh. What's more, as your energy needs grow, the system is modular to allow you to use 10 units in parallel to achieve 2.61mWh.

Multiple smart functions allow you to take advantage of local electricity prices, and manage a system of solar panels, EV chargers and energy storage systems. The liquid cooling technology helps manage the temperature of the battery more efficiently than the air-cooled version, while the 4+1 fire safety design and aerosol fire suppression deliver high levels of safety and peace of mind.

Key features:

1. All-in-one AC-coupled inverter and battery system designed for commerce and industry
2. Consists of 125kW inverter and 261kWh battery
3. Scalable up to 10 units
4. Intelligent liquid cooling function to manage heat dissipation
5. 4+1 fire safety design
6. Aerosol fire suppression
7. High-power, high-density LFP cells
8. Energy Management System (EMS) monitors working status in real-time
9. Smart functionality allows for autonomous scheduling to take advantage of local electricity pricing and management of PV systems and EV charging
10. Local data storage for one year for data analysis and verification
11. Supports on-grid and off-grid solutions
12. Full-stack self-developed BMS, EMS, PCS and SolaXCloud
13. Cell-level balancing and smart temperature control
14. Ingress protection rating: IP67 for battery, IP66 for inverter and IP55 for cabinet
15. Dimensions: 1350mm (W) x 2355mm (H) x 1350mm (D)
16. Weight: 2810kg
