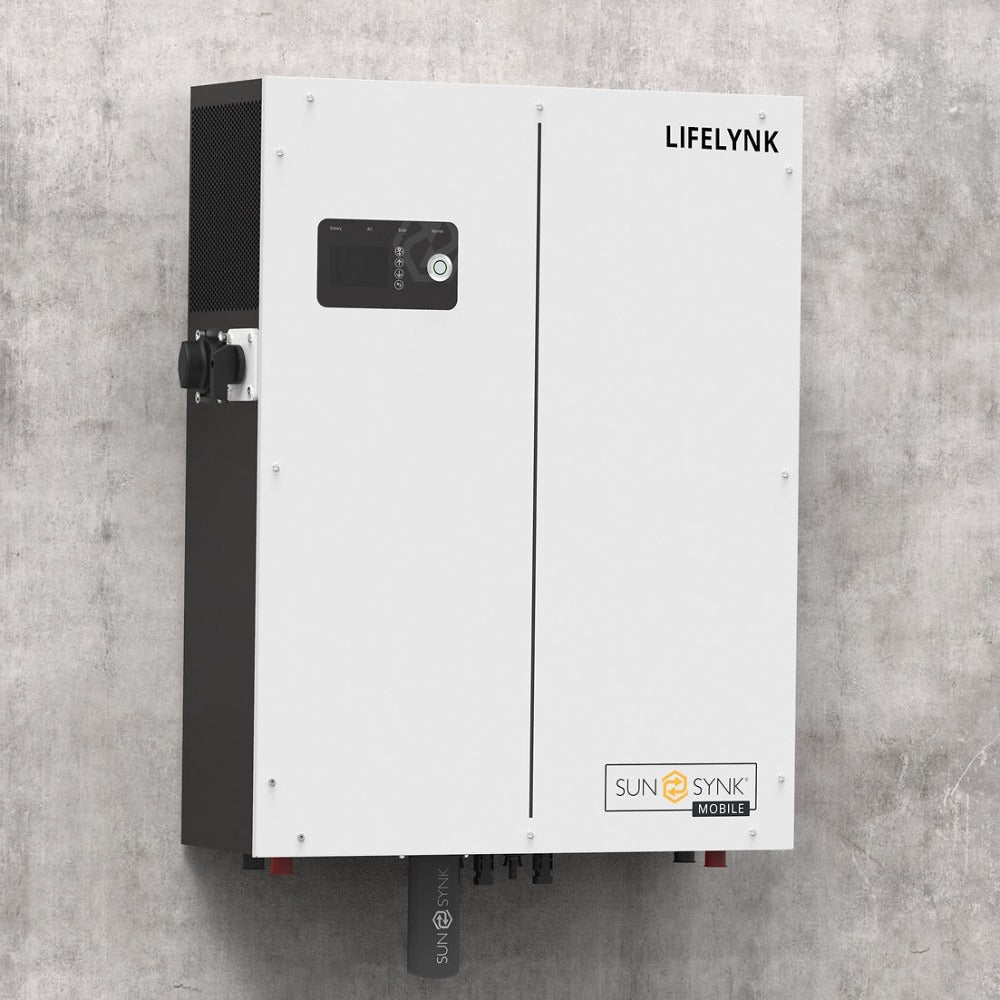

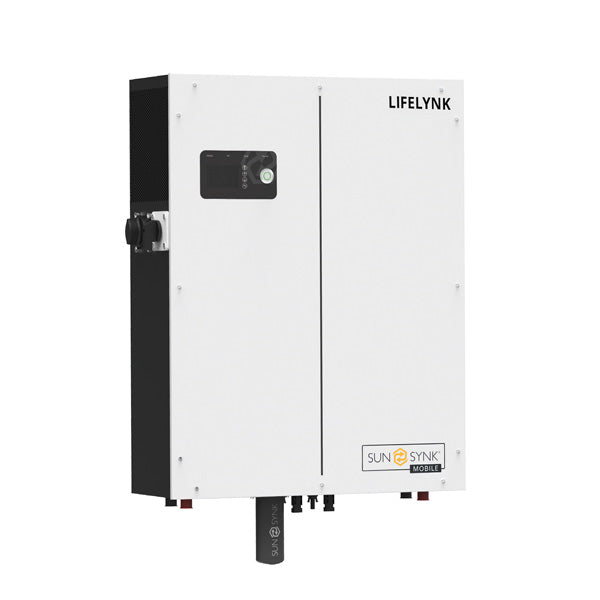

Sunsynk Lifelynk X 3.6kW Single-Phase Inverter and 3.84kWh Battery

Specially designed to simplify and speed up installation, the Sunsynk Lifelynk X 3.6kW hybrid inverter is a true all-in-one, plug-and-play, expandable inverter that can make planning and implementation of large-scale fit-outs a breeze. With the dedicated Sunsynk Connect platform, this inverter enables full control and access to the system, simplifying site-specific customisation.

Supplied with everything you need to install quickly, this hybrid inverter features inbuilt connection points for access to the load, grid, CT, and WiFi data logger ports, making it a true plug-and-play system.

This product is perfect for retrofitting into a current solar PV install and would need to suit the power rating of the current solar array. The inbuilt battery is also expandable to a higher capacity at a later date if required. The Sunsynk Lifelynk X also has the ability to power an emergency power system in case of a power cut. It will also suit installation alongside an EV charger too.

Key features:

1. Quick to install and ideal for smaller properties, social housing and local government projects
2. 3.6kW hybrid inverter, 3.84kWh LiFePO4 battery and a 4.5kW MPPT all in one compact unit
3. Easy-to-understand LCD display
4. Supports Wi-Fi or GSM monitoring
5. Inbuilt MPPT trackers and smart-settable three-stage MPPT charging to optimise battery performance
6. Supplied with inbuilt connection ports and preset factory settings
7. Fully programmable controller and supply priority for battery or grid
8. Ingress protection: IP20
9. Dimensions: 701mm (H) x 534mm (L) x 182mm (W)
10. Weight: 51.7kg
